TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPST 25A 110V

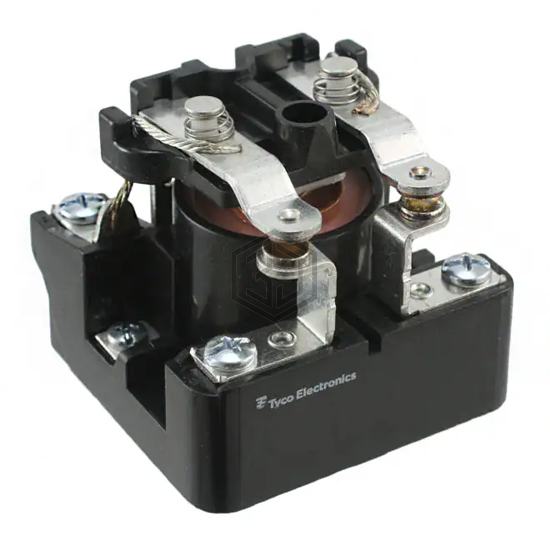

PRD-7DY0-110 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPST 25A 110V. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 80°C, contact material Silver (Ag), termination style Screw Terminal.
In Stock: 8,485
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 110VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 240VAC - Nom |
| Coil Current | 18.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 82.5 VDC |
| Must Release Voltage | 11 VDC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -55°C ~ 80°C |
| Contact Material | Silver (Ag) |
| Relay Type | General Purpose |
Submit your RFQ for PRD-7DY0-110 and get a quote within 24 hours.
