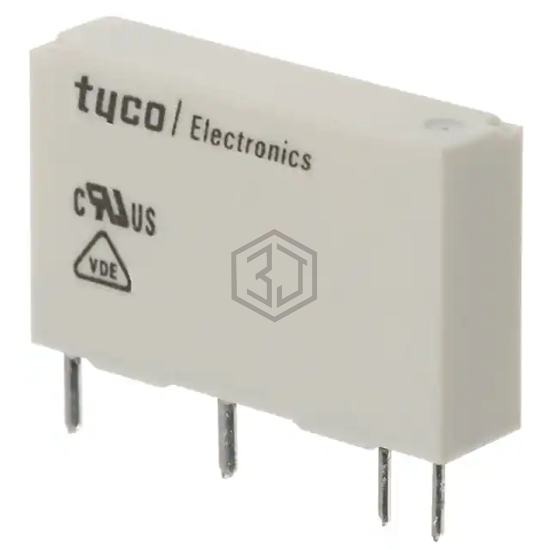

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 3A 24V
PCN-124D3MHZ,000 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 3A 24V. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 70°C, contact material Silver Nickel (AgNi), termination style PC Pin.
In Stock: 15,266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 277VAC, 125VDC - Max |
| Coil Current | 5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 8 ms |
| Release Time | 3 ms |
| Operating Temperature | -30°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
Submit your RFQ for PCN-124D3MHZ,000 and get a quote within 24 hours.
