TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 3A 12V

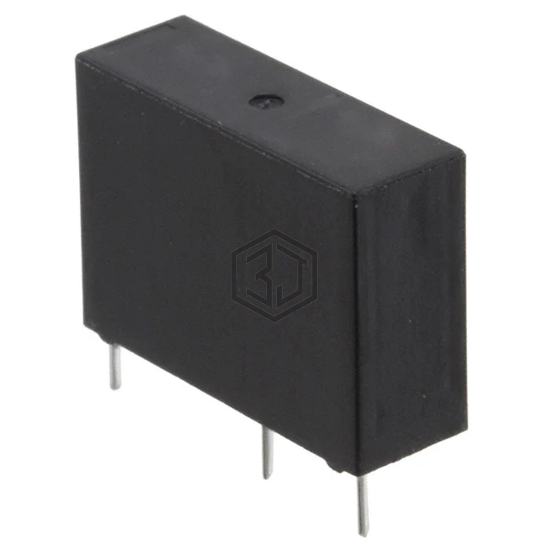

PCJ-112D3M,301 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 3A 12V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Nickel (AgNi), termination style PC Pin.
In Stock: 1,588
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class A |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 10 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
Submit your RFQ for PCJ-112D3M,301 and get a quote within 24 hours.
