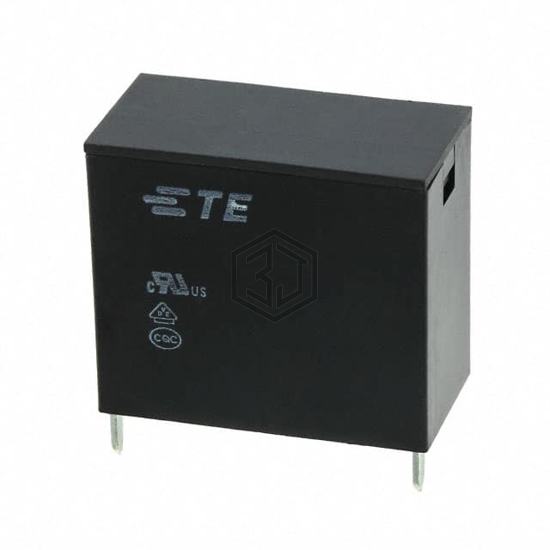

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 26A 12V
PCFN-112H2MS,02000 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 26A 12V. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 75°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 293
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 26 A |
| Switching Voltage | 277VAC - Max |
| Coil Current | 125 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -25°C ~ 75°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for PCFN-112H2MS,02000 and get a quote within 24 hours.
