TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 25A 24V

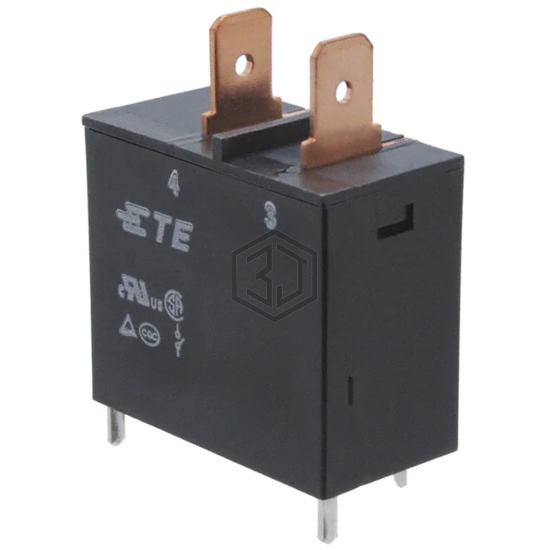

PCF-124D2M,000 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 25A 24V. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 55°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin, Quick Connect - 0.250" (6.3mm).
In Stock: 11,568
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 277VAC, 24VDC - Max |
| Coil Current | 37.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -30°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for PCF-124D2M,000 and get a quote within 24 hours.
