TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 16A 24V

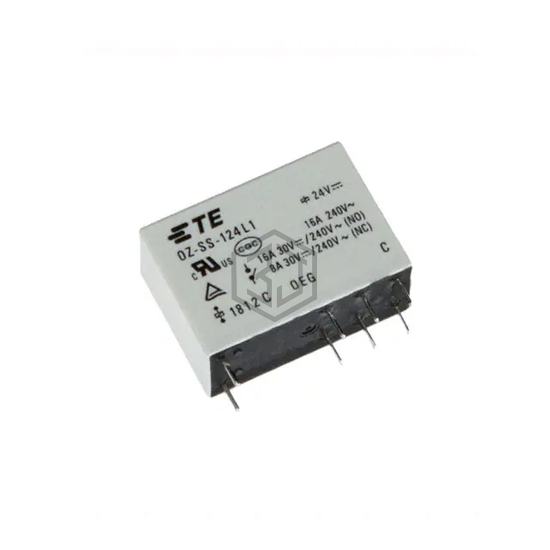

OZ-SS-124L1 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPDT 16A 24V. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 70°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 8,061
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 240VAC, 24VDC - Max |
| Coil Current | 21.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class A |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 8 ms |
| Operating Temperature | -30°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
