TE Connectivity Potter & Brumfield Relays

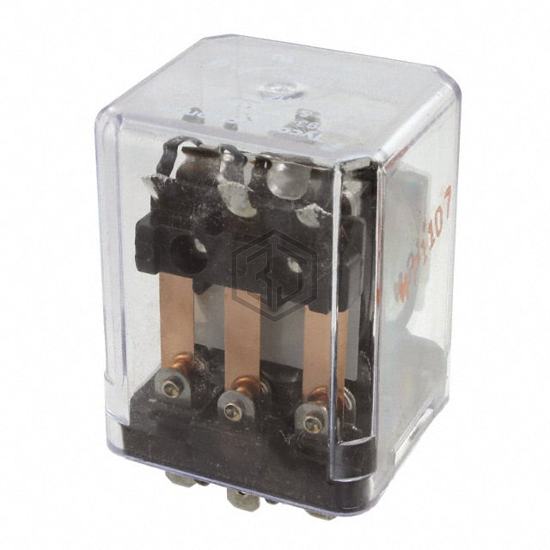

RELAY GEN PURPOSE 3PDT 10A 120V
KUP93-14A13-120 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE 3PDT 10A 120V. Key specifications: mounting type Socketable, operating temperature -45°C ~ 45°C, contact material Silver Cadmium Oxide (AgCdO), termination style Plug In, Quick Connect - 0.187" (4.7mm).
In Stock: 121
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Socketable |
| Coil Voltage | 120VAC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC, 28VDC - Max |
| Coil Current | 24 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 45°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for KUP93-14A13-120 and get a quote within 24 hours.
