TE Connectivity Potter & Brumfield Relays

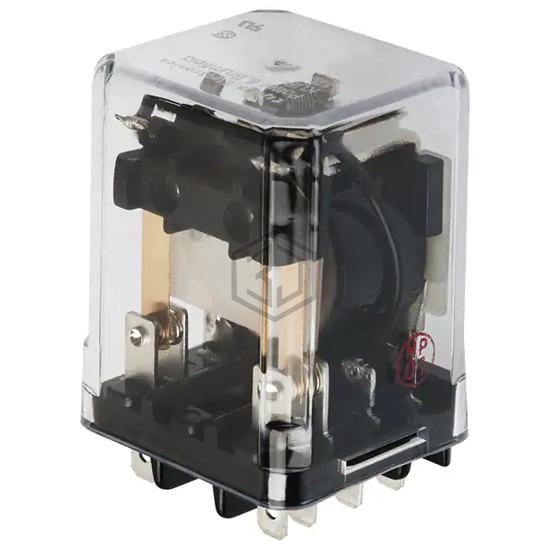

RELAY GEN PURPOSE 3PDT 10A 6V
KUP-14D15-6 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE 3PDT 10A 6V. Key specifications: mounting type Socketable, operating temperature -45°C ~ 70°C, contact material Silver Cadmium Oxide (AgCdO), termination style Plug In, Quick Connect - 0.187" (4.7mm).
In Stock: 94
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 6VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC - Max |
| Coil Current | 187 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 4.5 VDC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for KUP-14D15-6 and get a quote within 24 hours.
