TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPST 15A 24V

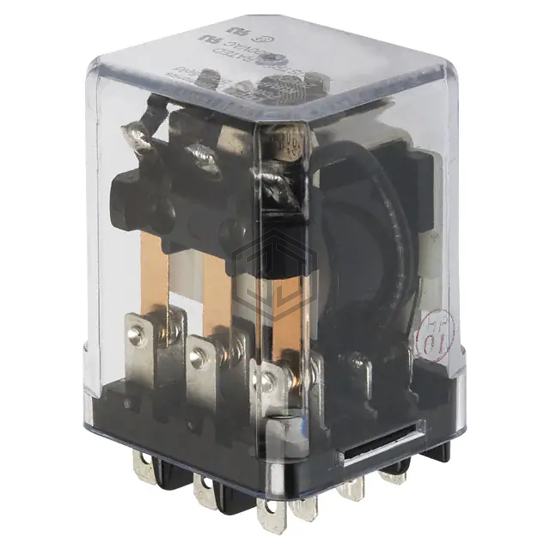

KUMP-7A58-24 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPST 15A 24V. Key specifications: mounting type Chassis Mount, operating temperature -45°C ~ 55°C, contact material Silver Cadmium Oxide (AgCdO), termination style Quick Connect - 0.187" (4.7mm).
In Stock: 140
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 24VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 277VAC - Max |
| Coil Current | 115 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 20.4 VAC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 55°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for KUMP-7A58-24 and get a quote within 24 hours.
