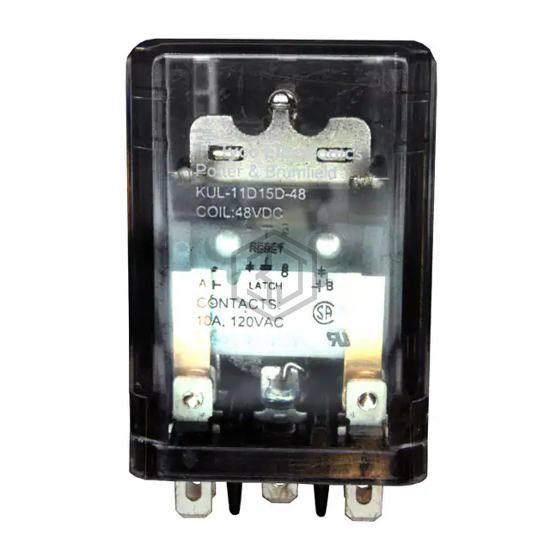

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 10A 48V
KUL-11D15D-48 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 10A 48V. Key specifications: mounting type Socketable, operating temperature -45°C ~ 50°C, contact material Silver Cadmium Oxide (AgCdO), termination style Plug In, Quick Connect - 0.187" (4.7mm).
In Stock: 124
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 48VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC - Max |
| Coil Current | - |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | - |
| Operate Time | 25 ms |
| Release Time | 25 ms |
| Operating Temperature | -45°C ~ 50°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
