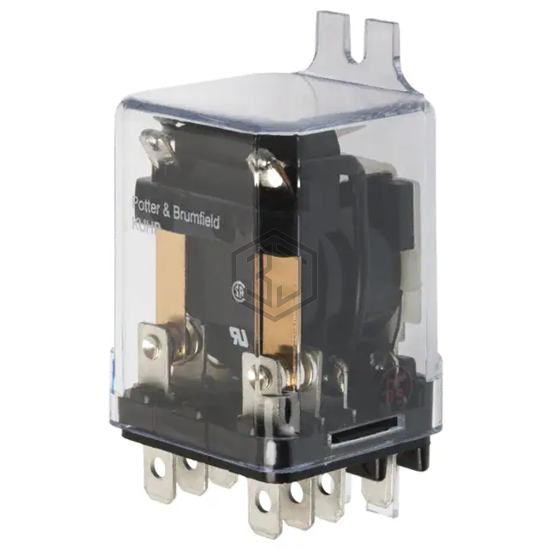

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 20A 24V
KUHP-11D17-24 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 20A 24V. Key specifications: mounting type Through Hole, operating temperature -45°C ~ 70°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 732
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 240VAC - Max |
| Coil Current | 51 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for KUHP-11D17-24 and get a quote within 24 hours.
