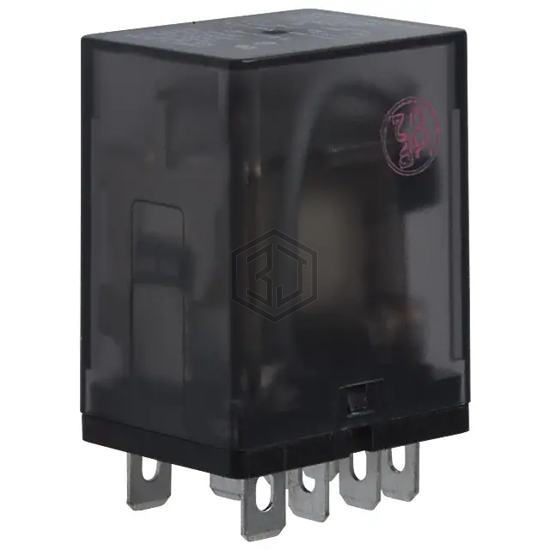

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPDT 15A 120V
K10P-11A15-120 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 15A 120V. Key specifications: mounting type Socketable, operating temperature -45°C ~ 70°C, contact material Silver Cadmium Oxide (AgCdO), termination style Plug In, Quick Connect - 0.187" (4.7mm).
In Stock: 487
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 120VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 15 A |
| Switching Voltage | 120VAC - Max |
| Coil Current | 11 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 12 VAC |
| Operate Time | 13 ms |
| Release Time | 10 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for K10P-11A15-120 and get a quote within 24 hours.
