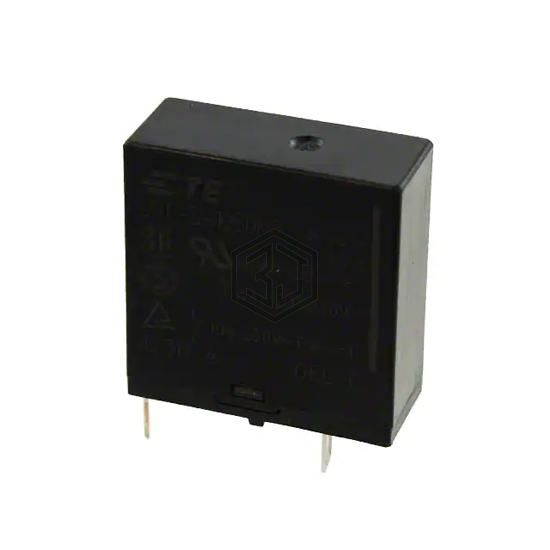

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 5V
8-1419125-0 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 10A 5V. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 70°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 4,875
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC, 30VDC - Max |
| Coil Current | 108 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | Class E |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 15 ms |
| Release Time | 5 ms |
| Operating Temperature | -30°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
