TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 12A 24V

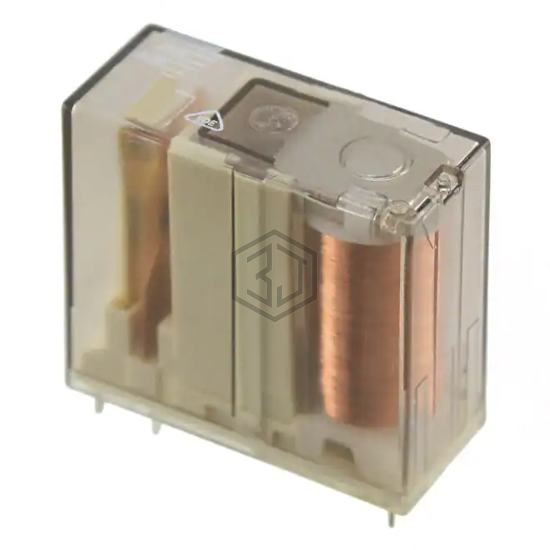

6-1393231-6 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 12A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 35°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 5,349
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 21.8 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 14 ms |
| Release Time | 12 ms |
| Operating Temperature | -40°C ~ 35°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
