TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 30A 12V

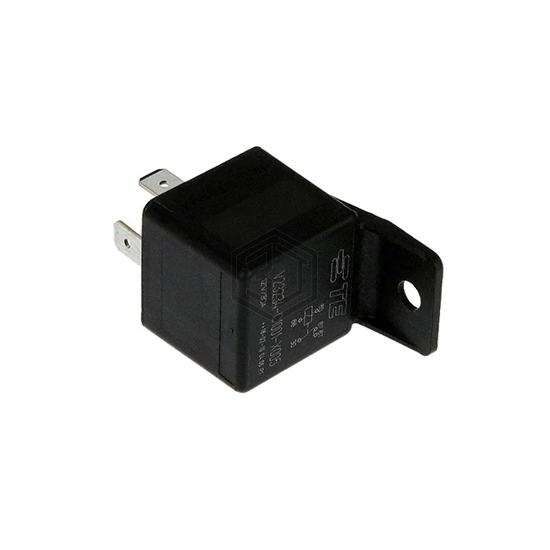

5-1904012-1 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 30A 12V. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, contact material Silver Alloy, termination style Quick Connect - 0.187"/0.250".
In Stock: 577
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 12VDC - Nom |
| Coil Current | 141.2 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.187"/0.250" |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 8 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 7 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Alloy |
| Relay Type | General Purpose |
Submit your RFQ for 5-1904012-1 and get a quote within 24 hours.
