TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 6A 12V

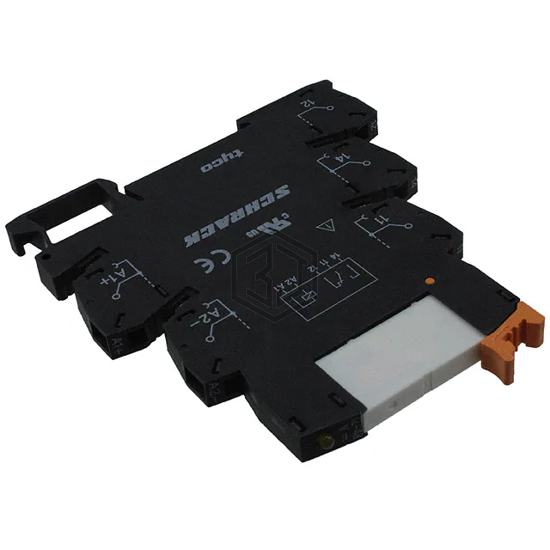

3-1416100-6 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPDT 6A 12V. Key specifications: mounting type DIN Rail, operating temperature -40°C ~ 55°C, contact material Silver Tin Oxide (AgSnO), termination style Spring Terminal.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | DIN Rail |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 6 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 14.2 mA |
| Coil Type | Non Latching |
| Features | Socket Included |
| Termination Style | Spring Terminal |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 12 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for 3-1416100-6 and get a quote within 24 hours.
