TE Connectivity Potter & Brumfield Relays

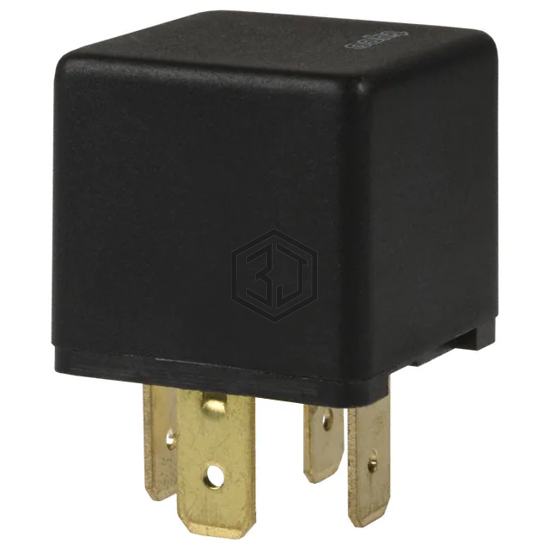

RELAY GEN PURPOSE SPDT 40A 24V
1432874-1 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPDT 40A 24V. Key specifications: mounting type Socketable, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style Plug In, Quick Connect - 0.250" (6.3mm).
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 40 A |
| Switching Voltage | 14VDC - Nom |
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Features | Resistor |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 15.6 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 13 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for 1432874-1 and get a quote within 24 hours.
