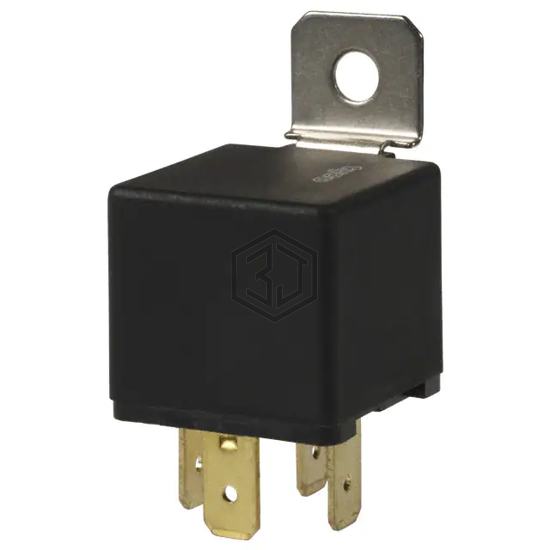

TE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 30A 12V
1432772-1 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE SPST 30A 12V. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style Plug In, Quick Connect - 0.250" (6.3mm).
In Stock: 3,529
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 14VDC - Nom |
| Coil Current | 133 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for 1432772-1 and get a quote within 24 hours.
