TE Connectivity Potter & Brumfield Relays

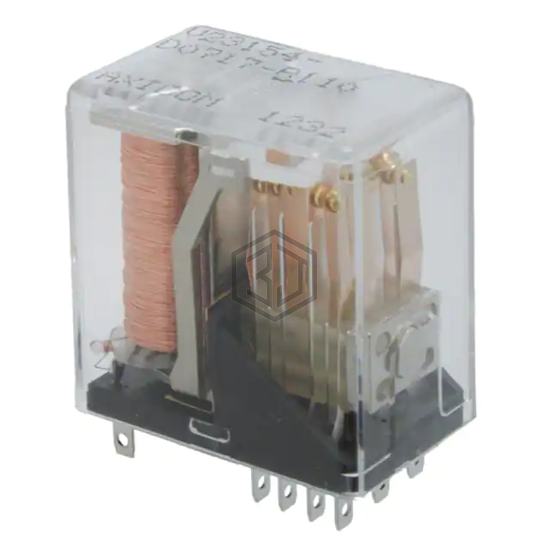

RELAY GEN PURPOSE DPDT 5A 72V
1-1393808-9 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Potter & Brumfield Relays. RELAY GEN PURPOSE DPDT 5A 72V. Key specifications: mounting type Socketable, operating temperature -40°C ~ 70°C, contact material Silver (Ag), termination style Plug In.
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 72VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 125VAC, 150VDC - Max |
| Coil Current | 9.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 48 VDC |
| Must Release Voltage | - |
| Operate Time | 7.5 ms |
| Release Time | 3 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver (Ag) |
| Relay Type | General Purpose |
Submit your RFQ for 1-1393808-9 and get a quote within 24 hours.
