TE Connectivity AMP Connectors
CONN FFC FPC VERT 9POS 1MM SMD

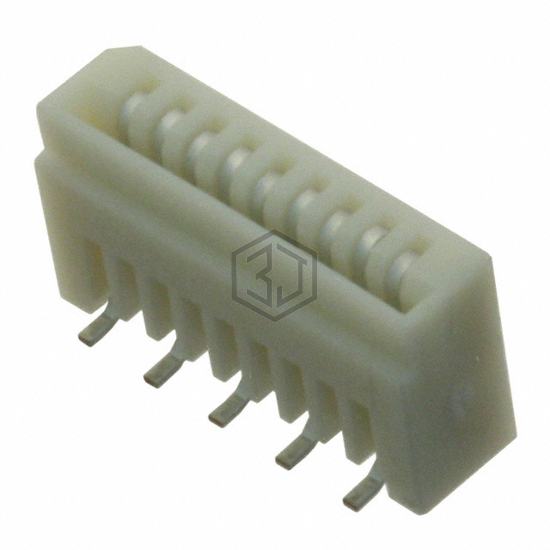

84982-9 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. CONN FFC FPC VERT 9POS 1MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, voltage rating 125V, housing material Polyamide (PA), Nylon, Glass Filled.
In Stock: 8,296
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 9 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.220" (5.59mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 125V |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | - |
Submit your RFQ for 84982-9 and get a quote within 24 hours.
