TE Connectivity AMP Connectors

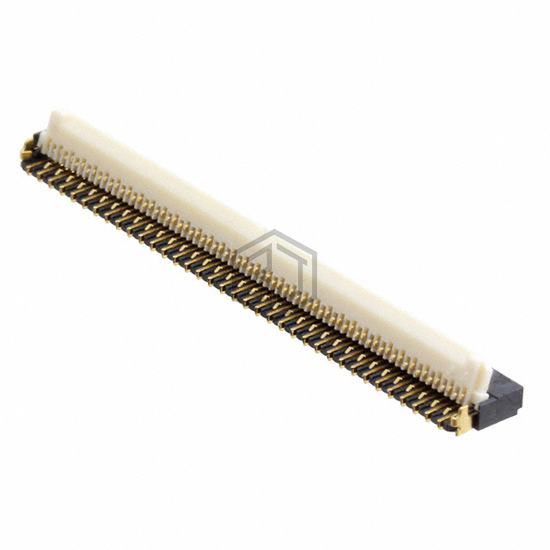

CONN FFC BOTTOM 71POS 0.30MM R/A
7-2041390-1 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. CONN FFC BOTTOM 71POS 0.30MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 30V, housing material Liquid Crystal Polymer (LCP).
In Stock: 26,311
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 71 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 30V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
