TE Connectivity AMP Connectors

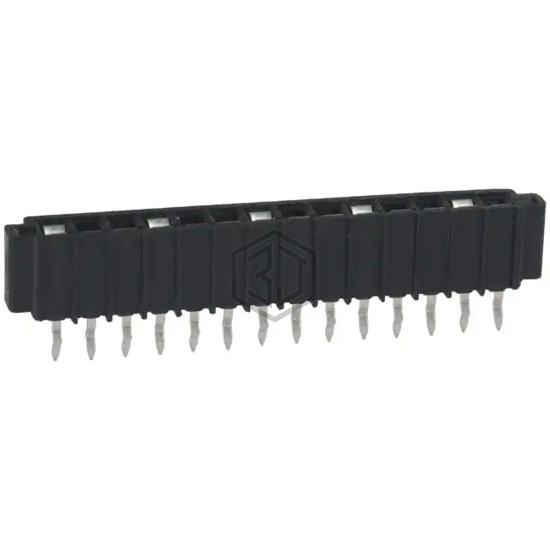

CONN FFC VERT 14POS 2.54MM PCB
6-520315-4 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. CONN FFC VERT 14POS 2.54MM PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 250V, housing material Polyester Thermoplastic, Glass Filled.
In Stock: 1,509
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 14 |
| Pitch | 0.100" (2.54mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Height Above Board | 0.273" (6.93mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyester Thermoplastic, Glass Filled |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 250V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 6-520315-4 and get a quote within 24 hours.
