TE Connectivity AMP Connectors
DISCRETE ETHERNET MAGNETICS SING

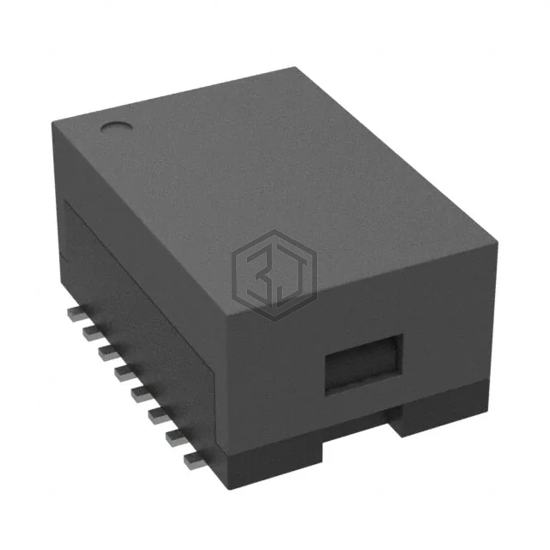

5-2337822-1 is a Audio Transformers manufactured by TE Connectivity AMP Connectors. DISCRETE ETHERNET MAGNETICS SING. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, size / dimension 0.500" L x 0.343" W (12.70mm x 8.70mm), termination style Gull Wing.
In Stock: 3,843
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1CT:1CT |
| Impedance - Primary (Ohms) | - |
| Impedance - Secondary (Ohms) | - |
| DC Resistance (DCR) - Primary | - |
| DC Resistance (DCR) - Secondary | - |
| Transformer Type | - |
| Frequency Range | - |
| Frequency Response | - |
| Voltage - Isolation | 1500Vrms |
| Insertion Loss | -1dB Max @ 100kHz ~ 100MHz |
| Return Loss | -18dB Min @ 1MHz ~ 30MHz |
| Power Level | - |
| Operating Temperature | -40°C ~ 105°C |
| Approval Agency | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.500" L x 0.343" W (12.70mm x 8.70mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Termination Style | Gull Wing |
Submit your RFQ for 5-2337822-1 and get a quote within 24 hours.
