TE Connectivity AMP Connectors
RELAY GEN PURPOSE SPDT 20A 24V

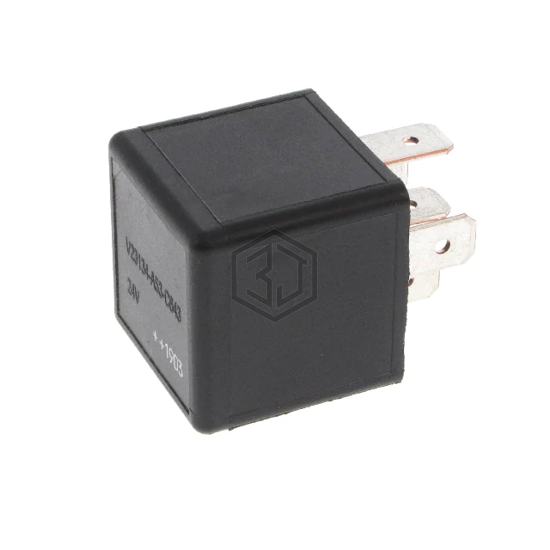

5-1393302-1 is a Power Relays, Over 2 Amps manufactured by TE Connectivity AMP Connectors. RELAY GEN PURPOSE SPDT 20A 24V. Key specifications: mounting type Socketable, operating temperature -40°C ~ 125°C, contact material Silver Alloy, termination style Plug In, Quick Connect - 0.110" (2.8mm).
In Stock: 630
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 28VDC - Nom |
| Coil Current | 74.1 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 14.4 VDC |
| Must Release Voltage | 3.2 VDC |
| Operate Time | 7 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 125°C |
| Contact Material | Silver Alloy |
| Relay Type | General Purpose |
Submit your RFQ for 5-1393302-1 and get a quote within 24 hours.
