TE Connectivity AMP Connectors
CONN FFC VERT 10POS 1.27MM PCB

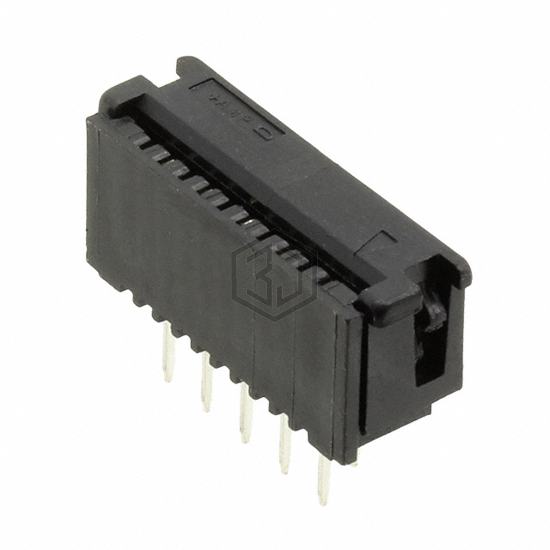

487576-2 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. CONN FFC VERT 10POS 1.27MM PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage rating 150V, housing material Thermoplastic.
In Stock: 6,676
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC |
| Mounting Type | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 10 |
| Pitch | 0.050" (1.27mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.10mm ~ 0.31mm |
| Height Above Board | 0.310" (7.87mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 150V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | - |
Submit your RFQ for 487576-2 and get a quote within 24 hours.
