TE Connectivity AMP Connectors

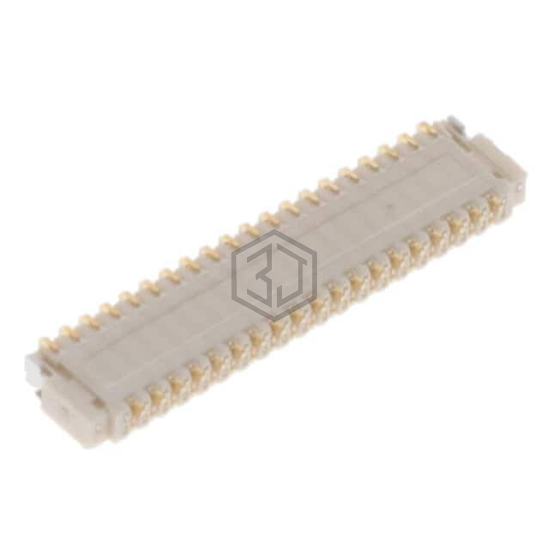

0.3MM PITCH FRONT FLIP FPC, 39PO
3-2328724-9 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. 0.3MM PITCH FRONT FLIP FPC, 39PO. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, voltage rating 30V, housing material Thermoplastic.
In Stock: 21,953
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 39 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Thermoplastic |
| Actuator Material | Thermoplastic |
| Features | - |
| Voltage Rating | 30V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 3-2328724-9 and get a quote within 24 hours.
