TE Connectivity AMP Connectors

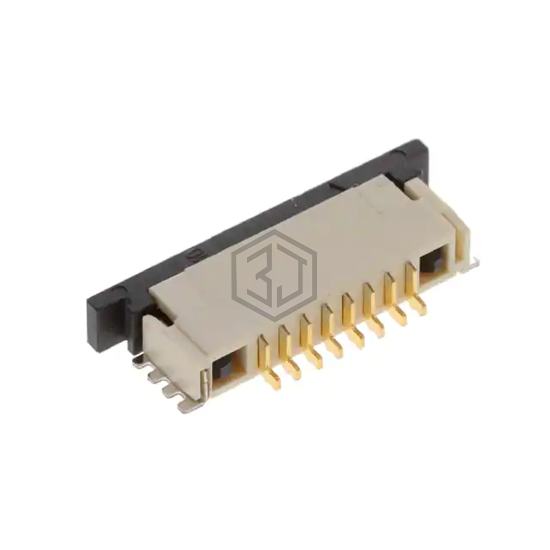

1MM FPC HORZ.BOTTOM CONT.ASSY 8P
1735265-8 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. 1MM FPC HORZ.BOTTOM CONT.ASSY 8P. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -40°C ~ 85°C, housing material Liquid Crystal Polymer (LCP), Glass Filled, termination Solder.
In Stock: 6,196
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 8 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.101" (2.56mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Actuator Material | Polyphthalamide (PPA), Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | - |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 1735265-8 and get a quote within 24 hours.
