TE Connectivity AMP Connectors

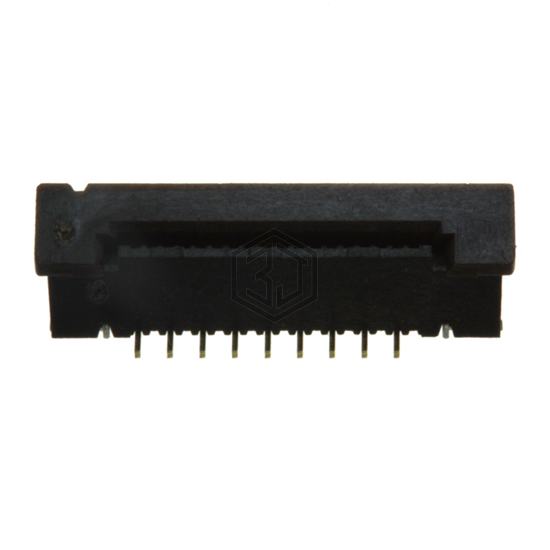

CONN FFC VERT 8POS 0.50MM SMD
1734742-8 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. CONN FFC VERT 8POS 0.50MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, voltage rating 50V, housing material Thermoplastic, Glass Filled.
In Stock: 23,784
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 8 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.163" (4.15mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight or Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Thermoplastic, Glass Filled |
| Actuator Material | Thermoplastic |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 1734742-8 and get a quote within 24 hours.
