TE Connectivity AMP Connectors

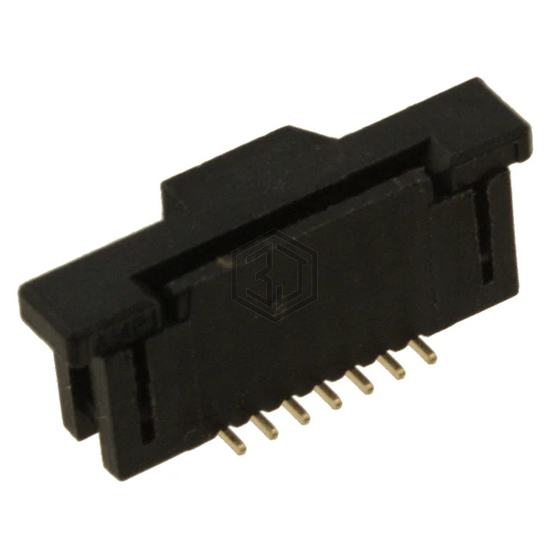

CONN FPC VERT 7POS 1.00MM SMD
1734248-7 is a FFC, FPC (Flat Flexible) Connectors manufactured by TE Connectivity AMP Connectors. CONN FPC VERT 7POS 1.00MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, voltage rating 125V, housing material Polyamide (PA9T), Nylon 9T.
In Stock: 6,423
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Number of Positions | 7 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.217" (5.50mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA9T), Nylon 9T |
| Actuator Material | Polyamide (PA9T), Nylon 9T |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 125V |
| Operating Temperature | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 1734248-7 and get a quote within 24 hours.
