TE Connectivity Passive Product
CAP ALUM 4.7UF 20% 50V SMD

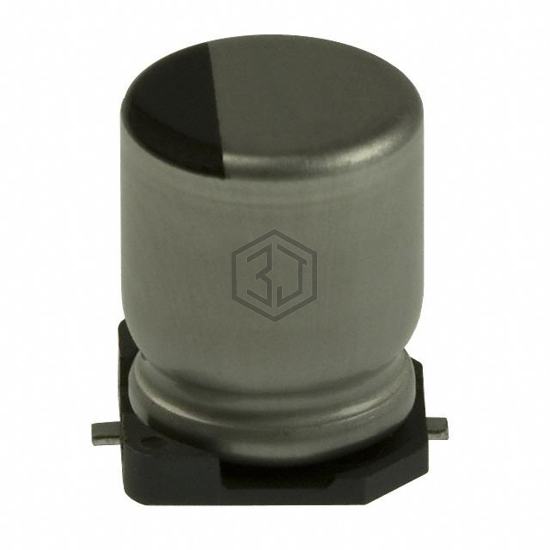

TYEH1H475E55MTR is a Aluminum Electrolytic Capacitors manufactured by TE Connectivity Passive Product. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 2,330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 mA @ 120 Hz |
| Ripple Current @ High Frequency | 25.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1H4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 95% | View |
| 475SVH050MDR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 95% | View |
| 475SVH035MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 86% | View |
| UUL1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 83% | View |
| UT475M035HCHTA | Aillen | CAP. ALUM 4.7UF 35V 20% SMD | 81% | View |
| MAL213968478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4.7UF 20% 63V SMD | 76% | View |
Submit your RFQ for TYEH1H475E55MTR and get a quote within 24 hours.
