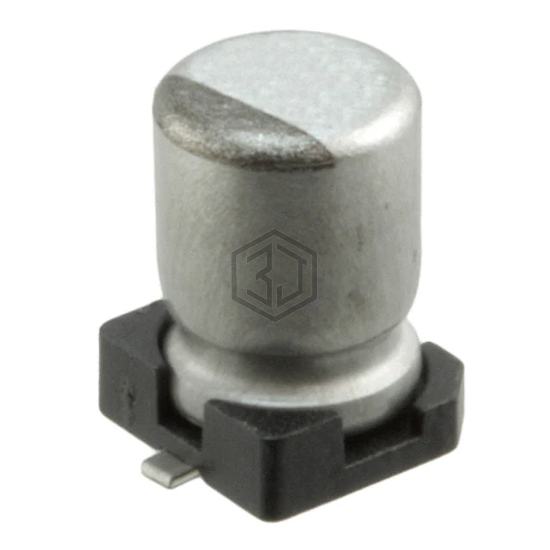

CAP ALUM 4.7UF 20% 35V SMD
UUL1V4R7MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,462
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz |
| Ripple Current @ High Frequency | 22.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UT475M035HCHTA | Aillen | CAP. ALUM 4.7UF 35V 20% SMD | 100% | View |
| 475SVH035MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 97% | View |
| 475SVL035MCW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 86% | View |
| TYEH1H475E55MTR | TE Connectivity Passive Product | CAP ALUM 4.7UF 20% 50V SMD | 83% | View |
| EEE-HP1E4R7R | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 25V SMD | 82% | View |
| 35TZV4.7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 60% | View |
Submit your RFQ for UUL1V4R7MCL1GS and get a quote within 24 hours.
