TE Connectivity Passive Product
RES 0.022 OHM 1% 1/4W 0805

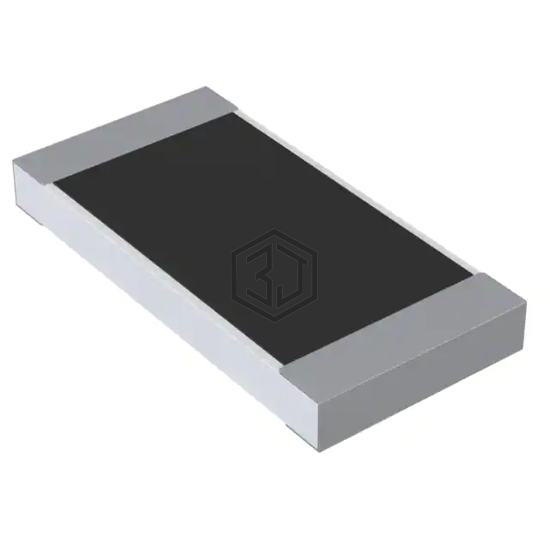

TLM2ADR022FTD is a Chip Resistor - Surface Mount manufactured by TE Connectivity Passive Product. RES 0.022 OHM 1% 1/4W 0805. Key specifications: operating temperature -55°C ~ 155°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.049" W (2.00mm x 1.25mm), power (watts) 0.25W, 1/4W.
In Stock: 3,798
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 22 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PF0805FRF7W0R022L | YAGEO | RES 0.022 OHM 1% 1/4W 0805 | 100% | View |
| TLM2AER022JTD | TE Connectivity Passive Product | RES 0.022 OHM 5% 1/4W 0805 | 100% | View |
| KRL1220E-M-R022-F-T5 | Susumu | RES 0.022 OHM 1% 1/2W 0805 | 69% | View |
| WFC0805R0220FE66 | Vishay Dale | RES 0.022 OHM 0.5 W 1% 0805 SMD | 69% | View |
| PE0603FRF070R022L | YAGEO | RES 0.022 OHM 1% 1/10W 0603 | 66% | View |
| PE1206FRM470R022L | YAGEO | RES 0.022 OHM 1% 1W 1206 | 65% | View |
Submit your RFQ for TLM2ADR022FTD and get a quote within 24 hours.
