RES 0.022 OHM 0.5 W 1% 0805 SMD

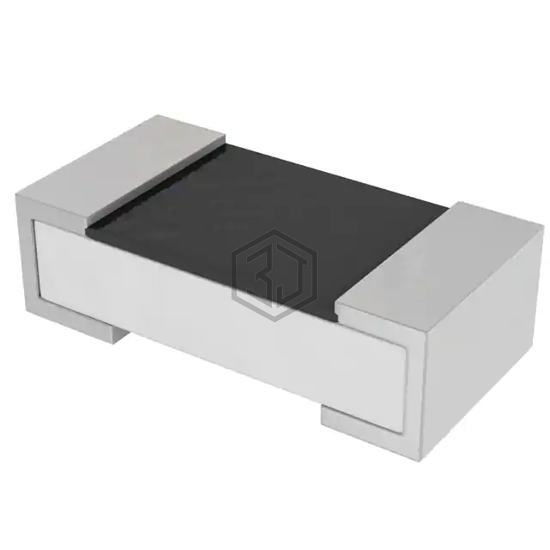

WFC0805R0220FE66 is a Chip Resistor - Surface Mount manufactured by Vishay Dale. RES 0.022 OHM 0.5 W 1% 0805 SMD. Key specifications: operating temperature -55°C ~ 170°C, package / case 0805 (2012 Metric), size / dimension 0.079" L x 0.051" W (2.00mm x 1.30mm), power (watts) 0.5W, 1/2W.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 22 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Metal Foil |
| Features | Current Sense |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.051" W (2.00mm x 1.30mm) |
| Height - Seated (Max) | 0.033" (0.85mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CSRF0805JT22L0 | Stackpole Electronics Inc | RES 0.022 OHM 5% 1/2W 0805 | 100% | View |
| PE1206FRM7W0R022L | YAGEO | RES 0.022 OHM 1% 1/2W 1206 | 96% | View |
| PE1206FRF7W0R022L | YAGEO | RES 0.022 OHM 1% 1/2W 1206 | 96% | View |
| PE1206JRM7W0R022L | YAGEO | RES 0.022 OHM 5% 1/2W 1206 | 96% | View |
| PE1206JRF7W0R022L | YAGEO | RES 0.022 OHM 5% 1/2W 1206 | 96% | View |
| PE2010FKE070R022L | YAGEO | RES 0.022 OHM 1% 1/2W 2010 | 91% | View |
Submit your RFQ for WFC0805R0220FE66 and get a quote within 24 hours.
