TE Connectivity Passive Product
RES 0.56 OHM 5% 2W 2616

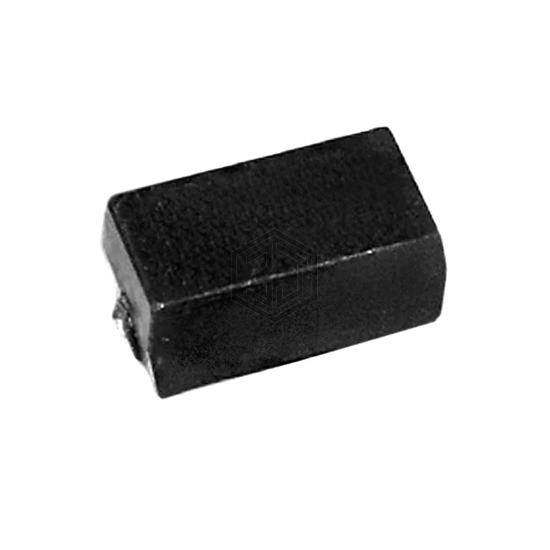

SMW2R56JT is a Chip Resistor - Surface Mount manufactured by TE Connectivity Passive Product. RES 0.56 OHM 5% 2W 2616. Key specifications: operating temperature -55°C ~ 200°C, package / case 2616 (6740 Metric), J-Lead, size / dimension 0.264" L x 0.157" W (6.70mm x 4.00mm), power (watts) 2W.
In Stock: 7,906
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Wirewound |
| Features | Flame Retardant Coating, Safety |
| Temperature Coefficient | ±200ppm/°C |
| Operating Temperature | -55°C ~ 200°C |
| Package / Case | 2616 (6740 Metric), J-Lead |
| Supplier Device Package | SMD |
| Ratings | - |
| Size / Dimension | 0.264" L x 0.157" W (6.70mm x 4.00mm) |
| Height - Seated (Max) | 0.152" (3.85mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SM4124JTR560 | Stackpole Electronics Inc | RES 0.56 OHM 5% 2W 4124 | 100% | View |
| PWR4525WR560J | Bourns Inc. | RES 0.56 OHM 5% 2W 4525 | 100% | View |
| PWR4525WR560JE | Bourns Inc. | RES 0.56 OHM 5% 2W 4525 | 100% | View |
| SM4124FTR549 | Stackpole Electronics Inc | RES 0.549 OHM 1% 2W 4124 | 99% | View |
| SM6227JTR560 | Stackpole Electronics Inc | RES 0.56 OHM 5% 3W 6227 | 79% | View |
| SMW3R56JT | TE Connectivity Passive Product | RES 0.56 OHM 5% 3W 4122 | 79% | View |
