RES 0.56 OHM 5% 2W 4525

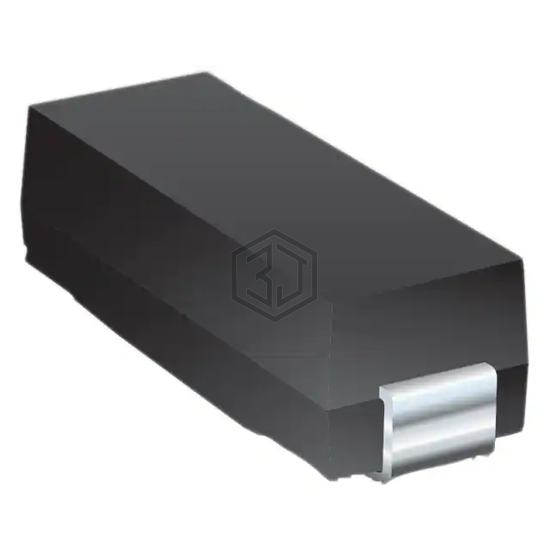

PWR4525WR560J is a Chip Resistor - Surface Mount manufactured by Bourns Inc.. RES 0.56 OHM 5% 2W 4525. Key specifications: operating temperature -55°C ~ 275°C, package / case 4525 J-Lead, size / dimension 0.449" L x 0.252" W (11.40mm x 6.40mm), power (watts) 2W.
In Stock: 8,988
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 560 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 2W |
| Composition | Wirewound |
| Features | Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±150ppm/°C |
| Operating Temperature | -55°C ~ 275°C |
| Package / Case | 4525 J-Lead |
| Supplier Device Package | - |
| Ratings | - |
| Size / Dimension | 0.449" L x 0.252" W (11.40mm x 6.40mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SM4124JTR560 | Stackpole Electronics Inc | RES 0.56 OHM 5% 2W 4124 | 100% | View |
| SM4124FTR549 | Stackpole Electronics Inc | RES 0.549 OHM 1% 2W 4124 | 99% | View |
| SM4124FTR536 | Stackpole Electronics Inc | RES 0.536 OHM 1% 2W 4124 | 97% | View |
| SM6227JTR560 | Stackpole Electronics Inc | RES 0.56 OHM 5% 3W 6227 | 79% | View |
| SM6227FTR549 | Stackpole Electronics Inc | RES 0.549 OHM 1% 3W 6227 | 77% | View |
| SM6227FTR536 | Stackpole Electronics Inc | RES 0.536 OHM 1% 3W 6227 | 76% | View |
Submit your RFQ for PWR4525WR560J and get a quote within 24 hours.
