TE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE SPST 5A 12V

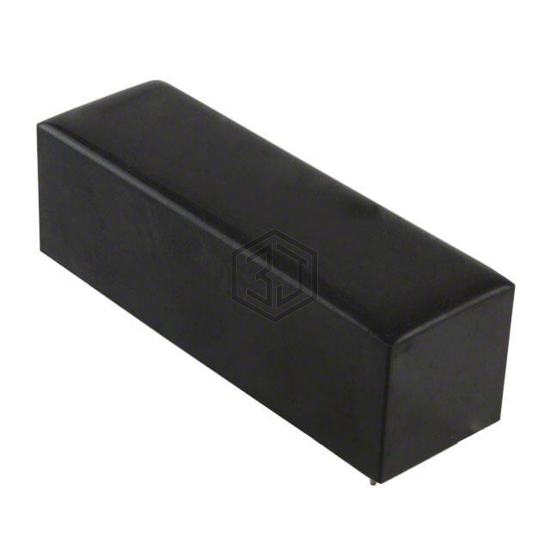

K81B235 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Aerospace, Defense and Marine. RELAY GEN PURPOSE SPST 5A 12V. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 85°C, termination style PC Pin, coil voltage 12VDC.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 10000VDC - Max |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 8 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Operating Temperature | -55°C ~ 85°C |
| Contact Material | - |
| Relay Type | General Purpose |
Submit your RFQ for K81B235 and get a quote within 24 hours.
