TE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE SPDT 18A 12V

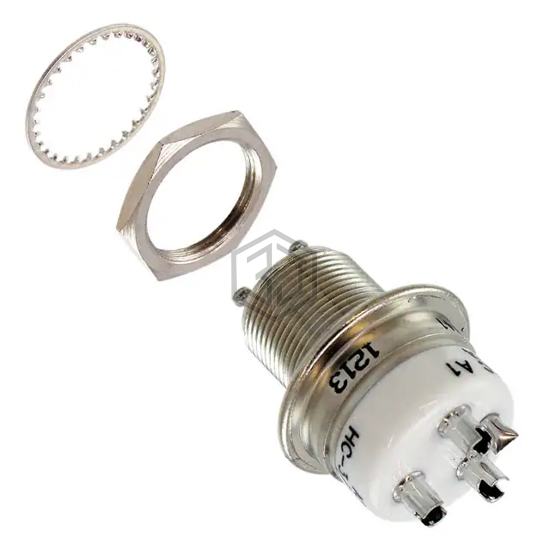

HC-3/12VDC is a Power Relays, Over 2 Amps manufactured by TE Connectivity Aerospace, Defense and Marine. RELAY GEN PURPOSE SPDT 18A 12V. Key specifications: mounting type Panel Mount, operating temperature -55°C ~ 125°C, contact material Tungsten (W), termination style Solder Turret.
In Stock: 451
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 18 A |
| Switching Voltage | 3500VDC - Max |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Solder Turret |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 8 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 6 ms |
| Release Time | 6 ms |
| Operating Temperature | -55°C ~ 125°C |
| Contact Material | Tungsten (W) |
| Relay Type | General Purpose |
Submit your RFQ for HC-3/12VDC and get a quote within 24 hours.
