TE Connectivity Aerospace, Defense and Marine
RELAY GEN PURPOSE DPDT 5A 28V

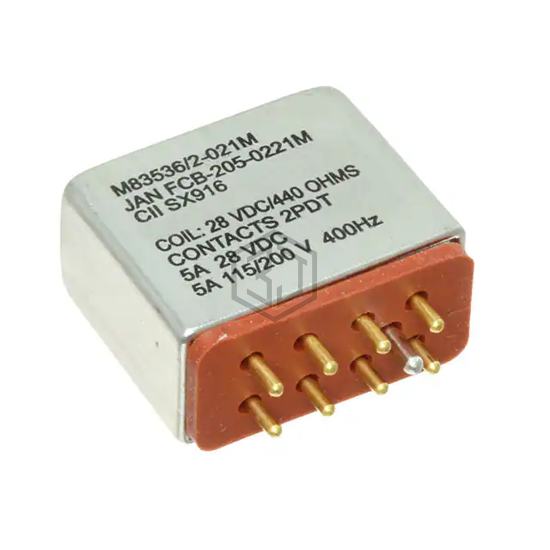

FCB-205-0221M is a Power Relays, Over 2 Amps manufactured by TE Connectivity Aerospace, Defense and Marine. RELAY GEN PURPOSE DPDT 5A 28V. Key specifications: mounting type Chassis Mount, operating temperature -70°C ~ 125°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Chassis Mount |
| Coil Voltage | 28VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 28VDC - Nom |
| Coil Current | 56 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 13.5 VDC |
| Must Release Voltage | 2.3 VDC |
| Operate Time | 5 ms |
| Release Time | 5 ms |
| Operating Temperature | -70°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for FCB-205-0221M and get a quote within 24 hours.
