TE Connectivity Aerospace, Defense and Marine

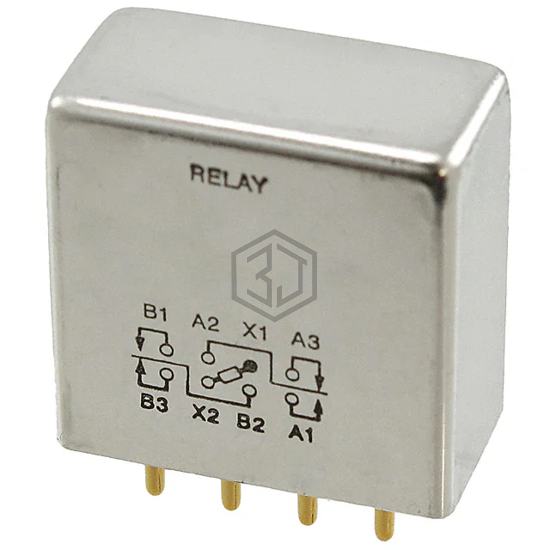

RELAY GEN PURPOSE DPDT 10A 12V
B07D034BB2-0120 is a Power Relays, Over 2 Amps manufactured by TE Connectivity Aerospace, Defense and Marine. RELAY GEN PURPOSE DPDT 10A 12V. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, contact material Silver Cadmium Oxide (AgCdO), termination style PC Pin.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 115VAC, 28VDC - Max |
| Coil Current | 160 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | 6.5 VDC |
| Must Release Voltage | 0.8 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -65°C ~ 125°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
Submit your RFQ for B07D034BB2-0120 and get a quote within 24 hours.
