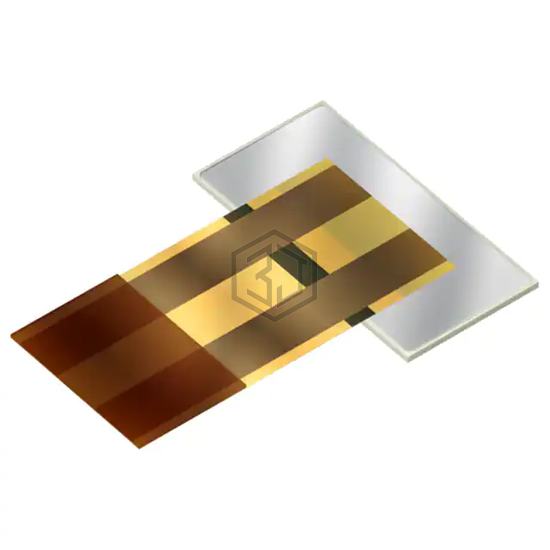

PIEZO PRODUCT FOR SOUND SPEAKER,
PHUA2010-049B-00-000 is a Speakers manufactured by TDK Corporation. PIEZO PRODUCT FOR SOUND SPEAKER,. Key specifications: size / dimension 0.787" L x 0.394" W (20.00mm x 10.00mm), termination Flex Contacts, power - max 10 W, frequency range 100 Hz ~ 20 kHz.
In Stock: 146
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Piezo |
| Type | General Purpose |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | - |
| Impedance | 2.2 Ohms|Ohms |
| Efficiency - dBA | - |
| Efficiency - Testing | 100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 5 W |
| Power - Max | 10 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | - |
| Ingress Protection | - |
| Ratings | - |
| Termination | Flex Contacts |
| Size / Dimension | 0.787" L x 0.394" W (20.00mm x 10.00mm) |
| Height - Seated (Max) | 0.019" (0.49mm) |
Submit your RFQ for PHUA2010-049B-00-000 and get a quote within 24 hours.
