PC95PQI20/9Z-12

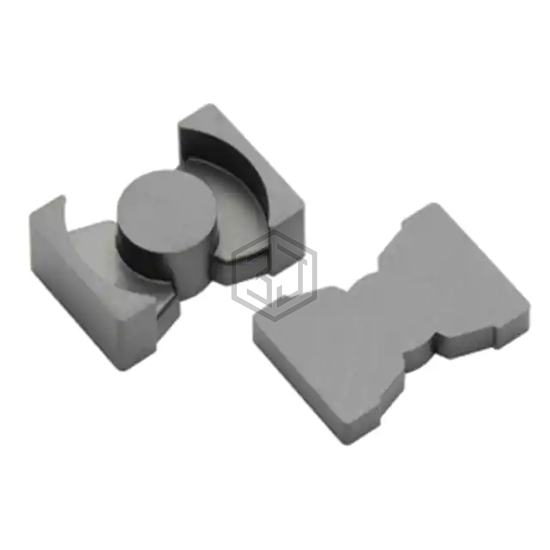

FERRITE CORE PQI 7.07UH 1SET
PC95PQI20/9Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQI 7.07UH 1SET. Key specifications: supplier device package PQI 20 x 9, material PC95, tolerance ±25%.
In Stock: 4,375
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | HPQ, PQD |
| Supplier Device Package | PQI 20 x 9 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 7.07 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.35 |
| Effective Length (le) mm | 66 |
| Effective Area (Ae) mm² | 22.9 |
| Minimum Core Cross Section (Amin) mm² | 59.3 |
| Effective Magnetic Volume (Ve) mm³ | 1510 |
| Finish | Uncoated |
| Height | 0.236" (6.00mm) |
| Length | 0.807" (20.50mm) |
| Width | 0.551" (14.00mm) |
Frequently Asked Questions
PC95PQI20/9Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQI 7.07UH 1SET
The package type of PC95PQI20/9Z-12 is PQI 20 x 9.
The material of PC95PQI20/9Z-12 is PC95.
The tolerance of PC95PQI20/9Z-12 is ±25%.
