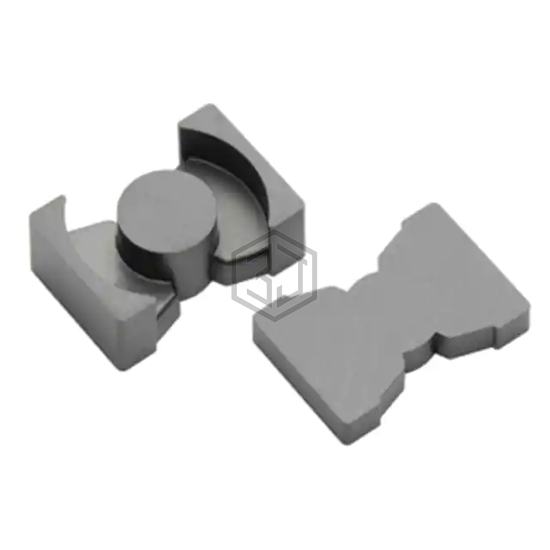

PC95PQI16/7.8Z-12
FERRITE CORE PQI 4.91UH 1SET
PC95PQI16/7.8Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQI 4.91UH 1SET. Key specifications: supplier device package PQI 16 x 7.8, material PC95, tolerance ±25%.
In Stock: 239
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | HPQ, PQD |
| Supplier Device Package | PQI 16 x 7.8 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 4.91 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.47 |
| Effective Length (le) mm | 41.8 |
| Effective Area (Ae) mm² | 19.5 |
| Minimum Core Cross Section (Amin) mm² | 37.6 |
| Effective Magnetic Volume (Ve) mm³ | 815 |
| Finish | Uncoated |
| Height | 0.213" (5.40mm) |
| Length | 0.646" (16.40mm) |
| Width | 0.441" (11.20mm) |
Frequently Asked Questions
PC95PQI16/7.8Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQI 4.91UH 1SET
The package type of PC95PQI16/7.8Z-12 is PQI 16 x 7.8.
The material of PC95PQI16/7.8Z-12 is PC95.
The tolerance of PC95PQI16/7.8Z-12 is ±25%.
