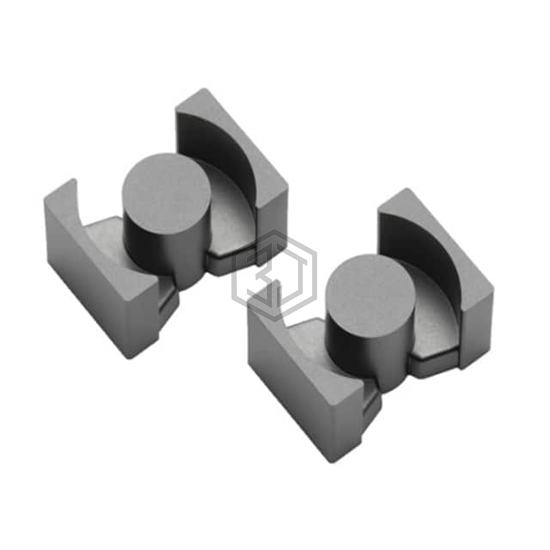

PC95PQ32/20Z-12
FERRITE CORE PQ 9.12UH 2PC SET
PC95PQ32/20Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQ 9.12UH 2PC SET. Key specifications: supplier device package PQ 32 x 20, material PC95, tolerance ±25%.
In Stock: 6,356
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | PQ 32 x 20 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 9.12 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.33 |
| Effective Length (le) mm | 55.5 |
| Effective Area (Ae) mm² | 170 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 9420 |
| Finish | Uncoated |
| Height | 0.809" (20.55mm) |
| Length | 1.260" (32.00mm) |
| Width | 0.866" (22.00mm) |
Frequently Asked Questions
PC95PQ32/20Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQ 9.12UH 2PC SET
The package type of PC95PQ32/20Z-12 is PQ 32 x 20.
The material of PC95PQ32/20Z-12 is PC95.
The tolerance of PC95PQ32/20Z-12 is ±25%.
