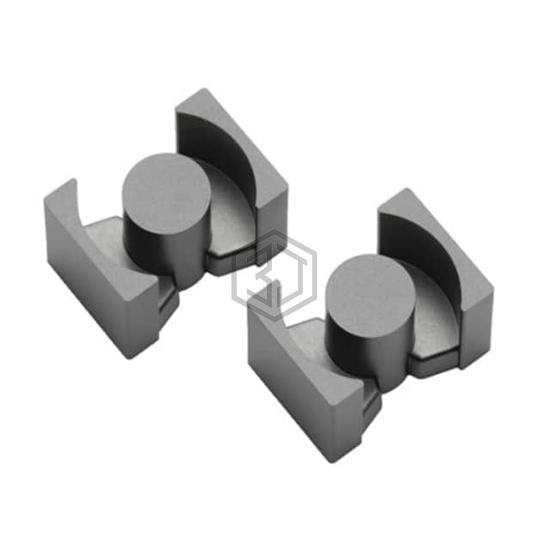

PC95PQ26/25Z-12
FERRITE CORE PQ 6.52UH 2PC SET
PC95PQ26/25Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQ 6.52UH 2PC SET. Key specifications: supplier device package PQ 26 x 25, material PC95, tolerance ±25%.
In Stock: 1,745
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | PQ 26 x 25 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 6.52 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.47 |
| Effective Length (le) mm | 55.5 |
| Effective Area (Ae) mm² | 118 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 6530 |
| Finish | Uncoated |
| Height | 0.974" (24.75mm) |
| Length | 1.043" (26.50mm) |
| Width | 0.748" (19.00mm) |
Frequently Asked Questions
PC95PQ26/25Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQ 6.52UH 2PC SET
The package type of PC95PQ26/25Z-12 is PQ 26 x 25.
The material of PC95PQ26/25Z-12 is PC95.
The tolerance of PC95PQ26/25Z-12 is ±25%.
