PC95PQ20/16Z-12

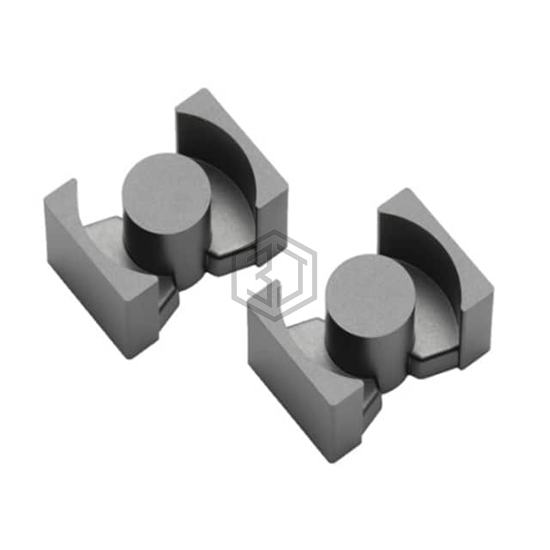

FERRITE CORE PQ 4.48UH 2PC SET
PC95PQ20/16Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQ 4.48UH 2PC SET. Key specifications: supplier device package PQ 20 x 16, material PC95, tolerance ±25%.
In Stock: 9,695
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | PQ |
| Supplier Device Package | PQ 20 x 16 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 4.48 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.61 |
| Effective Length (le) mm | 37.4 |
| Effective Area (Ae) mm² | 62 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 2310 |
| Finish | Uncoated |
| Height | 0.638" (16.20mm) |
| Length | 0.807" (20.50mm) |
| Width | 0.551" (14.00mm) |
Frequently Asked Questions
PC95PQ20/16Z-12 is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE PQ 4.48UH 2PC SET
The package type of PC95PQ20/16Z-12 is PQ 20 x 16.
The material of PC95PQ20/16Z-12 is PC95.
The tolerance of PC95PQ20/16Z-12 is ±25%.
