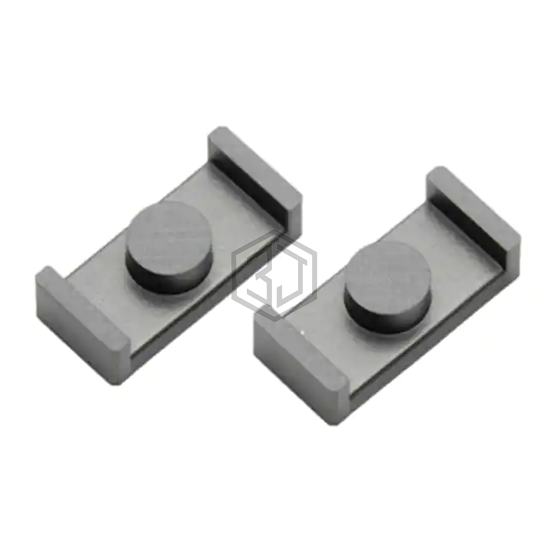

PC95ER9.5/5-Z
FERRITE CORE ER 1.19UH 2PC SET
PC95ER9.5/5-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ER 1.19UH 2PC SET. Key specifications: supplier device package ER 9.5 x 5, material PC95, tolerance ±25%.
In Stock: 875
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 9.5 x 5 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 1.19 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.67 |
| Effective Length (le) mm | 8.47 |
| Effective Area (Ae) mm² | 14.2 |
| Minimum Core Cross Section (Amin) mm² | 7.6 |
| Effective Magnetic Volume (Ve) mm³ | 120 |
| Finish | Uncoated |
| Height | 0.098" (2.50mm) |
| Length | 0.374" (9.50mm) |
| Width | 0.197" (5.00mm) |
Frequently Asked Questions
PC95ER9.5/5-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ER 1.19UH 2PC SET
The package type of PC95ER9.5/5-Z is ER 9.5 x 5.
The material of PC95ER9.5/5-Z is PC95.
The tolerance of PC95ER9.5/5-Z is ±25%.
