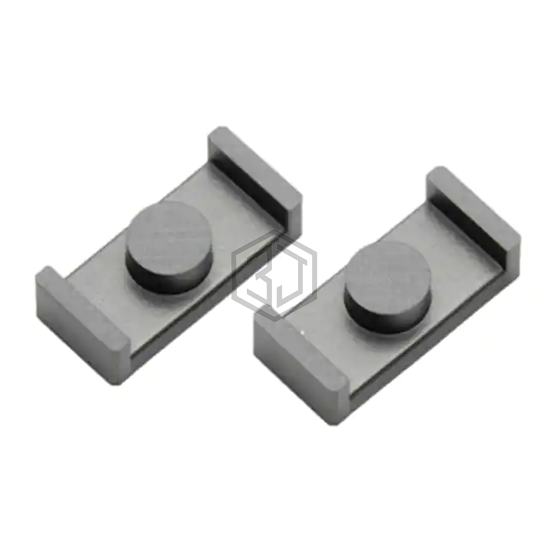

FERRITE CORE ER 4.3UH 2PC SET
PC95ER22/5.5/15-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ER 4.3UH 2PC SET. Key specifications: supplier device package ER 22 x 5.5 x 15, material PC95, tolerance ±25%.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 22 x 5.5 x 15 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 4.3 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.51 |
| Effective Length (le) mm | 46.1 |
| Effective Area (Ae) mm² | 23.2 |
| Minimum Core Cross Section (Amin) mm² | 36.3 |
| Effective Magnetic Volume (Ve) mm³ | 1070 |
| Finish | Uncoated |
| Height | 0.108" (2.75mm) |
| Length | 0.870" (22.10mm) |
| Width | 0.600" (15.25mm) |
Submit your RFQ for PC95ER22/5.5/15-Z and get a quote within 24 hours.
