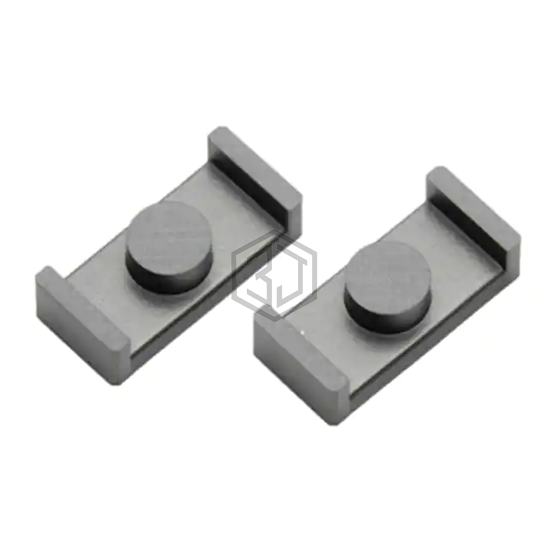

PC95ER14.5/6-Z
FERRITE CORE ER 1.88UH 2PC SET
PC95ER14.5/6-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ER 1.88UH 2PC SET. Key specifications: supplier device package ER 14.5 x 6, material PC95, tolerance ±25%.
In Stock: 6,587
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | ER 14.5 x 6 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 1.88 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.08 |
| Effective Length (le) mm | 17.6 |
| Effective Area (Ae) mm² | 19 |
| Minimum Core Cross Section (Amin) mm² | 17.3 |
| Effective Magnetic Volume (Ve) mm³ | 333 |
| Finish | Uncoated |
| Height | 0.118" (3.00mm) |
| Length | 0.571" (14.50mm) |
| Width | 0.264" (6.70mm) |
Frequently Asked Questions
PC95ER14.5/6-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ER 1.88UH 2PC SET
The package type of PC95ER14.5/6-Z is ER 14.5 x 6.
The material of PC95ER14.5/6-Z is PC95.
The tolerance of PC95ER14.5/6-Z is ±25%.
