FERRITE CORE ER 2.55UH 2PC SET

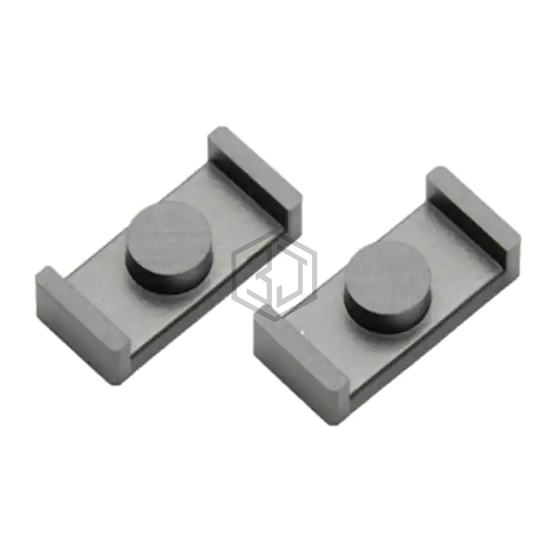

PC95ER14/4.5/9-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ER 2.55UH 2PC SET. Key specifications: supplier device package EI 14 x 4.5 x 9, material PC95, tolerance ±25%.
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ER |
| Supplier Device Package | EI 14 x 4.5 x 9 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 2.55 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.68 |
| Effective Length (le) mm | 22.7 |
| Effective Area (Ae) mm² | 15.4 |
| Minimum Core Cross Section (Amin) mm² | 21.2 |
| Effective Magnetic Volume (Ve) mm³ | 349 |
| Finish | Uncoated |
| Height | 0.089" (2.25mm) |
| Length | 0.545" (13.85mm) |
| Width | 0.354" (9.00mm) |
Submit your RFQ for PC95ER14/4.5/9-Z and get a quote within 24 hours.
