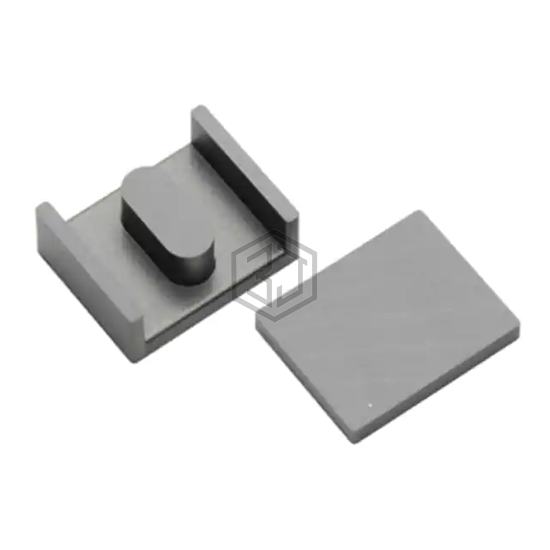

PC95ELT25X8.6-Z
FERRITE CORE ELT 7.54UH 1SET
PC95ELT25X8.6-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ELT 7.54UH 1SET. Key specifications: supplier device package ELT 25 x 8.6, material PC95, tolerance ±25%.
In Stock: 4
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | ELH, PLT |
| Supplier Device Package | ELT 25 x 8.6 |
| Material | PC95 |
| Diameter | - |
| Inductance Factor (Al) | 7.54 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | - |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.35 |
| Effective Length (le) mm | 85.6 |
| Effective Area (Ae) mm² | 30 |
| Minimum Core Cross Section (Amin) mm² | 83 |
| Effective Magnetic Volume (Ve) mm³ | 2570 |
| Finish | Uncoated |
| Height | 0.248" (6.30mm) |
| Length | 0.984" (25.00mm) |
| Width | 0.787" (20.00mm) |
Frequently Asked Questions
PC95ELT25X8.6-Z is a Ferrite Cores manufactured by TDK Corporation. FERRITE CORE ELT 7.54UH 1SET
The package type of PC95ELT25X8.6-Z is ELT 25 x 8.6.
The material of PC95ELT25X8.6-Z is PC95.
The tolerance of PC95ELT25X8.6-Z is ±25%.
